Hauv av GL116

Lus piav qhia luv luv:

Miniature recessed fixture ua tiav nrog CREE LED Pob thiab 12/45 degree beam xaiv.Tempered iav.Marine qib 316 Stainless Steel siv nyob rau IP68.Cov khoom hneev taw ntawm 60mm txoj kab uas hla kom ntseeg tau ntau yam kev thov.Cov kev xaiv tsav tsheb inline suav nrog hloov pauv, 1-10V thiab DALI dimmable daws teeb meem.Qhov no LED nyob rau hauv pem teb uplights muaj 1W, 1.3W, 3W, 3.5W zog xaiv.Nws tuaj yeem tswj tau los ntawm RGB lossis DMX RGB.Kev siv lub ntsej muag hlaws tuaj yeem tsis tsuas yog tswj hwm tus nqi lumen ntawm lub teeb pom kev zoo, tab sis kuj txo qhov glare.

Tsis tas li ntawd, lwm GL116C yog tsim nrog ib nrab-teeb pom kev zoo tsim, uas enriches lub teeb-emitting nyhuv thiab ua rau cov neeg muas zaub xaiv tsis li monotonous.Tus tsim ntawm cov khoom shrapnel tsis tsuas yog ua rau cov txheej txheem installation yooj yim heev, tab sis kuj zam kev pheej hmoo ntawm lub teeb raug nyiag.Qhov loj ntawm cov khoom yog 60 × 45, thiab qhov loj me uas tsim nyog ua rau kev siv ntau yam sib txawv.Yuav siv tau raws li cov kauj ruam teeb pom kev zoo, lawj teeb, txoj kev teeb, vaj teeb, phab ntsa recessed teeb, LED underwater teeb.



Peb zoo siab los teb cov lus nug, thov nyem lub cim hauv qab no xa koj cov lus nug thiab xaj.




HWV 116

Product Detail

Kev thauj mus los thiab ntim khoom

Cov khoom kuaj

Daim ntawv pov thawj

Peb txawv

Khoom cim npe

MOQ ntawm txhua yam khoom txawv, koj puas xav paub MOQ ntawm tus qauv no?

Thov nias ntawm no

Xav paub seb puas muaj kev txhawb nqa rau tus qauv no?

Thov nias ntawm no

Koj puas xav paub nws lub sijhawm Warranty?

Thov nias ntawm no

Koj puas xav paub seb puas muaj cov tsev neeg sib raug zoo rau cov qauv khoom no?

Thov nias ntawm no

Kev tua lub cev

Kev piav qhia

LED Lub teeb qhov chaw Siab zog LED
Xim Xim RGB, CW, WW, NW, Liab, Ntsuab, Xia, Amber
Khoom siv SUS 316

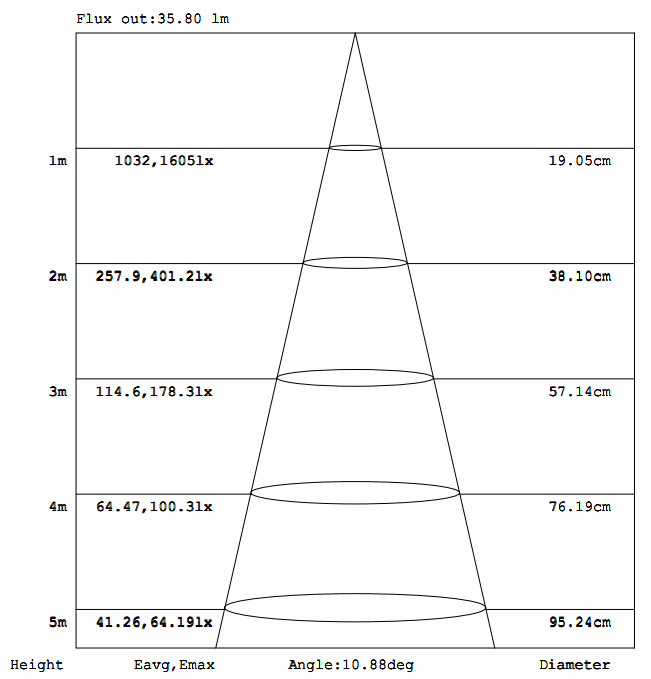

Optics S12° / F45°
Hwj chim 1W
Fais fab mov N/A

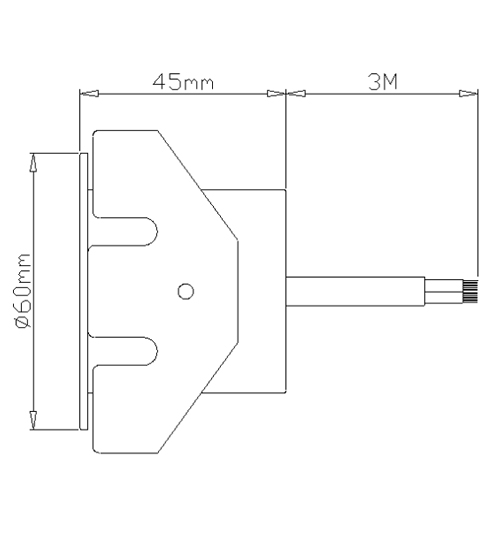

Dimenfion d60x45 ua
Qhov hnyav 465g ua
Kev ntsuas IP IP68
Kev pom zoo CE. RoHS.IP
Ambient kub -2 ° C ~ + 45 ° C
Lub neej nruab nrab 5 o,hwj
Accessories (Yeem) Yog lawm
Daim ntawv thov Sab hauv / Sab nraum zoov / Toj roob hauv pes / Submersible

GL116 Pem Hauv Ntej Teeb

Qauv No. LED Hom Xim Beam PowerMode Tswv yim Kev xaim Kab Hwj chim Luminous Flux Dimention DrillSize
HWV 116 CREE CW, WW, NW, Liab Ntsuab, Xiav, Amber S12/F45 Tam sim no tsis tu ncua 350 mA Series 3M 2X0.75mm² Kab 1W 100 LM d60x45 ua D50
GL116D UAS CREE CW, WW, NW, Liab Ntsuab, Xiav, Amber S12/F45 Tsis tu ncua voltage 24 VDC Parallel 3M 2X0.75mm² Kab 1.3 wb 100 LM d60x45 ua D50
GL 116C ua CREE CW, WW, NW, Liab Ntsuab, Xiav, Amber S12/F45 Tam sim no tsis tu ncua 350 mA Series 3M 2X0.75mm² Kab 1W 100 LM d60x45 ua D50
GL 116 RGB UAS Edison RGB 45 Tam sim no tsis tu ncua 350 mA Series 2x3M 4x0.5mm² Cable 3W N/A d60x45 ua D50
GL116DMX-RGB Edison RGB S12/F45 Tsis tu ncua voltage 24 VDC DMX Parallel 1.1M 4x0.5mm² Cable 3.5 wb N/A d60x45 ua D50
DMX decoder hauv built * IES Cov ntaub ntawv txhawb nqa.
TSW 116-2
TSW 116-1

■ Daim duab qhia qhov project


  • Yav dhau los:
  • Tom ntej:

  • Tag nrho cov khoom yuav raug ntim thiab xa tawm tsuas yog tom qab tag nrho cov khoom tau dhau los ntawm ntau yam kev ntsuas ntsuas, thiab lub ntim kuj yog qhov tseem ceeb tshaj plaws uas tsis tuaj yeem tsis quav ntsej.Raws li cov hlau tsis muaj roj teeb kuj hnyav, peb tau xaiv qhov zoo tshaj plaws thiab nyuaj corrugated thawv rau cov ntsiab lus ntawm cov ntim kom ntseeg tau tias cov khoom tuaj yeem tiv thaiv zoo los ntawm kev cuam tshuam los yog pob thaum thauj.Txhua yam khoom ntawm Oubo sib raug rau lub thawv tshwj xeeb sab hauv thiab yuav xaiv cov khoom ntim sib xws raws li qhov xwm txheej, lub xeev thiab qhov hnyav ntawm cov khoom thauj los xyuas kom meej tias txhua yam khoom ntim tsis tau tawm ntawm qhov sib txawv ntawm lub thawv thiab cov khoom raug kho nyob rau hauv lub thawv.Peb cov ntim khoom tsis tu ncua yog xim av corrugated puab lub thawv thiab xim av corrugated sab nrauv lub thawv.Yog tias tus neeg siv khoom xav tau los ua ib lub thawv xim tshwj xeeb rau cov khoom, peb kuj tuaj yeem ua tiav nws, tsuav yog koj qhia peb qhov muag ua ntej, peb yuav ua cov kev hloov kho thaum ntxov.



    Raws li cov kws tshaj lij cov chaw tsim khoom ntawm sab nraum zoov stainless hlau teeb, Eurborn muaj nws tus kheej ua tiav cov chaw kuaj sim.Peb tsis tshua cia siab rau cov neeg sab nrauv sab nrauv vim peb twb muaj cov cuab yeej tshaj lij tshaj plaws thiab ua tiav, thiab txhua yam khoom siv tau raug tshuaj xyuas thiab tswj xyuas tsis tu ncua.Xyuas kom meej tias txhua yam khoom siv tuaj yeem ua haujlwm ib txwm thiab ua kom haum raws sijhawm thiab kev tswj hwm ntawm cov khoom lag luam cov kev ntsuam xyuas thawj zaug.

    Eurborn Rhiav muaj ntau lub tshuab kev tshaj lij thiab cov khoom siv sim xws li cua-rhuab qhov cub, lub tshuab nqus tsev deaeration, UV ultraviolet test chambers, laser marking machine, tas li ntsuas kub thiab av noo, tshuaj tsuag ntsev tshuab, ceev LED spectrum tsom xam tshuab, luminous siv tis. xeem system (IES xeem), UV curing qhov cub thiab hluav taws xob tas li kub kom qhuav qhov cub, thiab lwm yam. Peb tuaj yeem ua tiav qhov kev tswj xyuas zoo rau txhua yam khoom peb tsim.

    Txhua yam khoom yuav dhau 100% kev ntsuas hluav taws xob tsis zoo, 100% kev kuaj kev laus thiab 100% ntsuas dej tsis zoo.Raws li kev paub ntau xyoo ntawm cov khoom lag luam, ib puag ncig ntsib los ntawm cov khoom lag luam yog ntau pua lub sij hawm hnyav dua li lub teeb sab hauv tsev rau sab nraum zoov hauv av thiab hauv qab dej stainless hlau teeb.Peb paub zoo tias lub teeb yuav tsis pom muaj teeb meem nyob rau lub sijhawm luv luv ntawm qhov chaw ib puag ncig.Rau Eurborn cov khoom, peb tshwj xeeb tshaj yog txog kev ua kom lub teeb tuaj yeem ua tiav kev ua haujlwm ruaj khov nyob rau hauv ntau qhov chaw hnyav.Hauv ib puag ncig ib puag ncig, peb qhov simulated ib puag ncig kev sim yog ob peb zaug hnyav dua.Qhov chaw hnyav no tuaj yeem qhia qhov zoo ntawm LED teeb kom paub tseeb tias tsis muaj cov khoom puas.Tsuas yog tom qab kev tshuaj ntsuam los ntawm txheej yuav Ober xa cov khoom zoo tshaj plaws rau peb Cov neeg siv khoom tes.

    测试



    Eurborn muaj daim ntawv pov thawj tsim nyog xws li IP, CE, ROHS, tsos patent thiab ISO, thiab lwm yam.
    IP daim ntawv pov thawj: Lub Koom Haum Saib Xyuas Kev Tiv Thaiv Ntiaj Teb (IP) faib cov teeb raws li lawv cov IP coding system rau plua plav, khoom txawv teb chaws thiab dej tsis zoo.Piv txwv li, Eurborn tsuas yog tsim cov khoom siv sab nraum zoov xws li faus & hauv av teeb, teeb hauv qab dej.Txhua sab nraum zoov stainless hlau teeb ntsib IP68, thiab lawv tuaj yeem siv rau hauv kev siv hauv av lossis siv hauv qab dej.EU daim ntawv pov thawj CE: Cov khoom lag luam yuav tsis cuam tshuam rau kev nyab xeeb ntawm tib neeg, tsiaj txhu thiab cov khoom lag luam.Txhua yam ntawm peb cov khoom muaj ntawv pov thawj CE.ROHS daim ntawv pov thawj: Nws yog tus qauv tsim los ntawm EU txoj cai.Nws lub npe tag nrho yog "Cov Lus Qhia Txog Kev Txwv Tsis Pub Siv Cov Khoom Muaj Kev Nyab Xeeb Hauv Cov Khoom Siv Hluav Taws Xob thiab Hluav Taws Xob".Nws yog tsuas yog siv los tsim cov khoom siv thiab cov txheej txheem ntawm cov khoom siv hluav taws xob thiab hluav taws xob.Nws yog qhov tsim nyog rau tib neeg kev noj qab haus huv thiab kev tiv thaiv ib puag ncig.Lub hom phiaj ntawm tus qauv no yog txhawm rau tshem tawm cov hlau lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls thiab polybrominated diphenyl ethers hauv cov khoom siv hluav taws xob thiab hluav taws xob.Txhawm rau tiv thaiv zoo dua cov cai thiab kev txaus siab ntawm peb cov khoom, peb muaj peb tus kheej zoo li daim ntawv pov thawj patent rau feem ntau cov khoom siv.ISO daim ntawv pov thawj: ISO 9000 series yog tus qauv nto moo tshaj plaws ntawm ntau cov qauv thoob ntiaj teb tsim los ntawm ISO (International Organization for Standardization).Cov qauv no tsis yog los ntsuas qhov zoo ntawm cov khoom, tab sis los ntsuas kev tswj xyuas cov khoom zoo hauv cov txheej txheem tsim khoom.Nws yog ib lub koom haum tswj tus qauv.

    证书



    1.Lub teeb lub cev ntawm cov khoom yog ua los ntawm SNS316L stainless hlau.316 stainless hlau muaj Mo, uas zoo dua nyob rau hauv corrosion kuj tshaj 304 stainless hlau nyob rau hauv kub kub.316 feem ntau txo cov ntsiab lus ntawm Cr thiab nce cov ntsiab lus ntawm Ni thiab nce Mo2% ~ 3%.Yog li ntawd, nws lub peev xwm los tiv thaiv corrosion yog muaj zog tshaj 304, haum rau siv nyob rau hauv tshuaj, dej hiav txwv thiab lwm qhov chaw.

    2.Lub teeb ci LED tau txais lub npe CREE.CREE yog lub teeb pom kev zoo tsim kho tshiab thiab cov chaw tsim khoom semiconductor ntawm lub khw.Qhov zoo ntawm cov nti yog los ntawm cov khoom siv silicon carbide (SiC), uas tuaj yeem siv ntau lub zog hauv qhov chaw me me, thaum muab piv rau lwm cov thev naus laus zis, cov khoom siv thiab cov khoom tsim hluav taws xob tsawg dua.CREE LED sib txuas cov khoom siv hluav taws xob tsis tshua muaj hluav taws xob zoo flip-chip InGaN thiab lub tuam txhab tus tswv G·SIC® substrate rau hauv ib qho, kom muaj kev siv zog thiab ua haujlwm siab LEDs ua tiav cov nqi zoo tshaj plaws.

    3.Lub iav txais tempered iav + ib feem ntawm silk screen, thiab iav thickness yog 3-12 hli.

    4.Lub tuam txhab yeej ib txwm xaiv high-conductivity txhuas substrates nrog ib tug thermal conductivity saum 2.0WM/K.Aluminium substrates yog siv los ua cov khoom siv hluav taws xob ncaj qha rau LEDs, uas cuam tshuam zoo rau kev ua haujlwm ntawm LEDs.Lub siab thermal conductivity aluminium substrate muaj qhov zoo conduction thiab tshav kub dissipation muaj peev xwm, thiab yog ntau haum rau cov khoom uas yuav tsum tau high heat dissipation peev, tshwj xeeb tshaj yog high-power LEDs.
